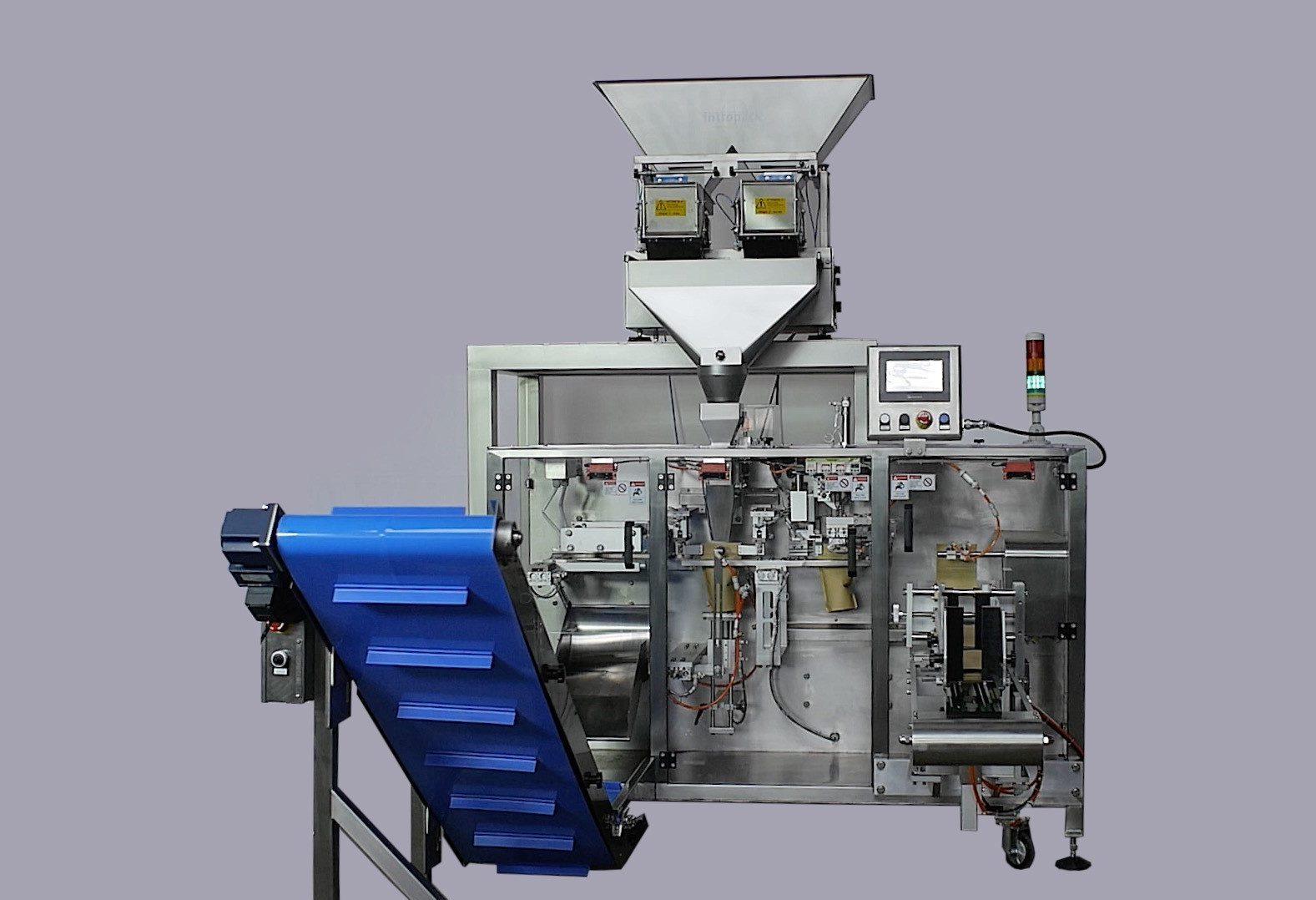

Buffalo servo 210
Dried Vegetables, Granulates, Heat Seal Film, Intropack IMH, Coffee & Tea, Nuts & Seeds, Pet Food, Powders, Rice & Beans, Candy, Liquid, Pre-Formed Bag, Flat Bag, Side Fold, Block Bottom Bag, 4-Side Sealed Bag, Polypropylene
A pneumatic working arm with cuctionpads, will take out one bag out of the stores magazine and hung in the machine. A "walking beam" takes care of the transport of the bags. The bag is opened at the first station and filled with your product at the second station using, for example, the Galaxy Compact (not included ). At the third station, the bags will by closed. After sealing, the bag will by removed with the help of a horizontal conveyor belt or an L-discharge belt. (option)
https://youtu.be/CEJtYEQpjUY
Features
- Mitsubishi PLC
- Omron Temperature controllers
- No bag no filling
- Easy adjustable
- Low Operating & Maintenance cost;
Specifications
- BRAND
- IMH
- TYPE
- Servo 210
- CATEGORY
- V.F.F.S
- POWER
- 240 VAC & Compressed air
- CAPACITY
- up til max. 20 p/min
- DIMENTION
- 1.900 x 700 x 1.550 mm (LxBxH)
- DIMENTION BAG
- width: 120 mm tot 240 mm length: 120 mm tot 310 mm
- DUTIABLE WEIGTH
- Max. 2 Kg
